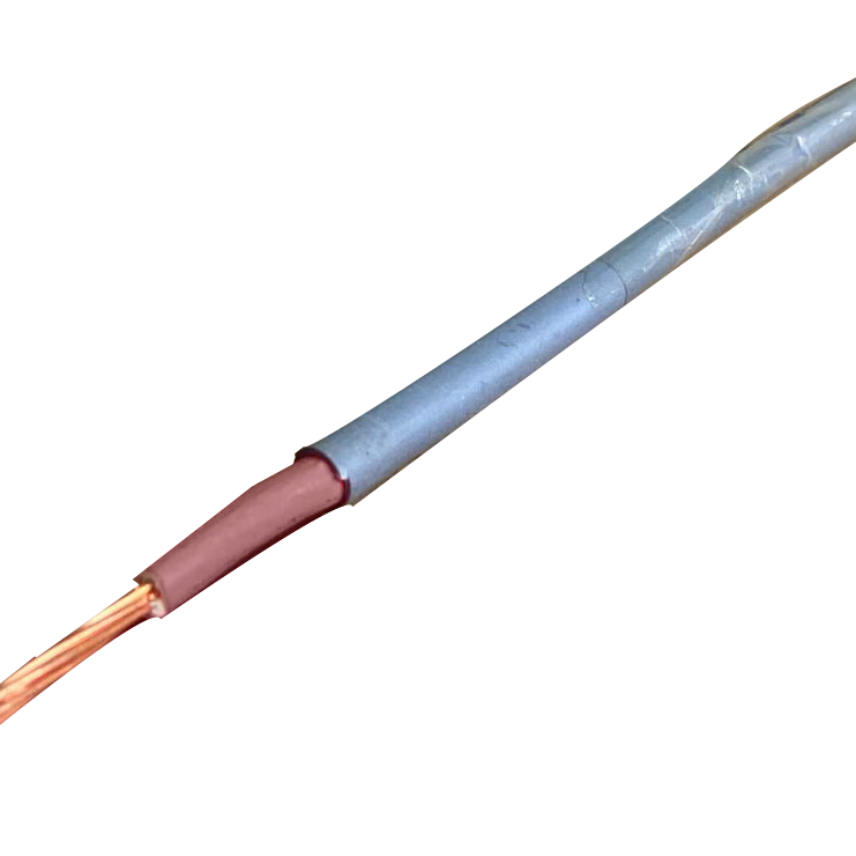

Surface wires - Copper, PVC Insulated, PVC Sheathed Single core Cable (CU/PVC/PVC)
Surface wires - Copper, PVC Insulated, PVC Sheathed Single core Cable (CU/PVC/PVC)
Surface wire is intended for protected fixed domestic and industrial installations. Installation may be in pipes or in closed gutters that are embedded in the wall or floor or on a surface.
Read more1.5mm2 PVC insulated, PVC sheathed (NCYY 1.5 RS)
Nexans ref. 1601470S - Country ref. Ghana
- Packaging: m
- Core identification: Black, blue, brown
- Approximate weight: 35.2 kg/km
- Core diameter: 2.9 mm
- Nominal conductor diameter: 1.5 mm
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 0.8 mm
- Nominal overall diameter: 4.5 mm
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 22 A
2.5mm2 PVC insulated, PVC sheathed (NCYY 2.5 RS)
Nexans ref. 1601471S - Country ref. Ghana
- Packaging: m
- Core identification: Red,Black
- Approximate weight: 49 kg/km
- Core diameter: 3.5 mm
- Nominal conductor diameter: 1.9 mm
- Nominal insulation thickness: 0.8 mm
- Nominal outer sheath thickness: 0.8 mm
- Nominal overall diameter: 5.1 mm
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 30 A
4.0mm2 PVC insulated, PVC sheathed (NCYY 4.0 RS)
Nexans ref. 1601475S - Country ref. Ghana
- Packaging: m
- Core identification: Black, blue, brown
- Approximate weight: 84.1 kg/km
- Core diameter: 4 mm
- Nominal conductor diameter: 2.4 mm
- Nominal insulation thickness: 0.8 mm
- Nominal outer sheath thickness: 1.4 mm
- Nominal overall diameter: 6.8 mm
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
- Permissible current rating in open air: 40 A
6.0mm2 PVC insulated, PVC sheathed (NCYY 6.0 RS)
Nexans ref. 1601350S - Country ref. Ghana
- Packaging: m
- Core identification: Black, blue, brown
- Approximate weight: 111.9 kg/km
- Core diameter: 5.4 mm
- Nominal conductor diameter: 3.75 mm
- Nominal insulation thickness: 0.8 mm
- Nominal outer sheath thickness: 1.4 mm
- Nominal overall diameter: 8.2 mm
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- Permissible current rating in open air: 52 A
Description
Description
Standards
-
ProductIEC 60227; IEC 60228 Class 2
-
TestIEC 60332-1-2
Design
Conductor
Copper core, solid (U) or stranded (R)
Insulation
PVC
Sheath
PVC
Application
- PVC-insulated conductors for fixed installations
- Domestic and industrial
- Panel wiring
- Rated voltage up to and including 450/750 V
Installation
- In industries
- In houses
Suitable for installation in electrical installation in conduits, pipes or similar closed systems - surface or flush mount.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
Roll of 100 yards (92m)
