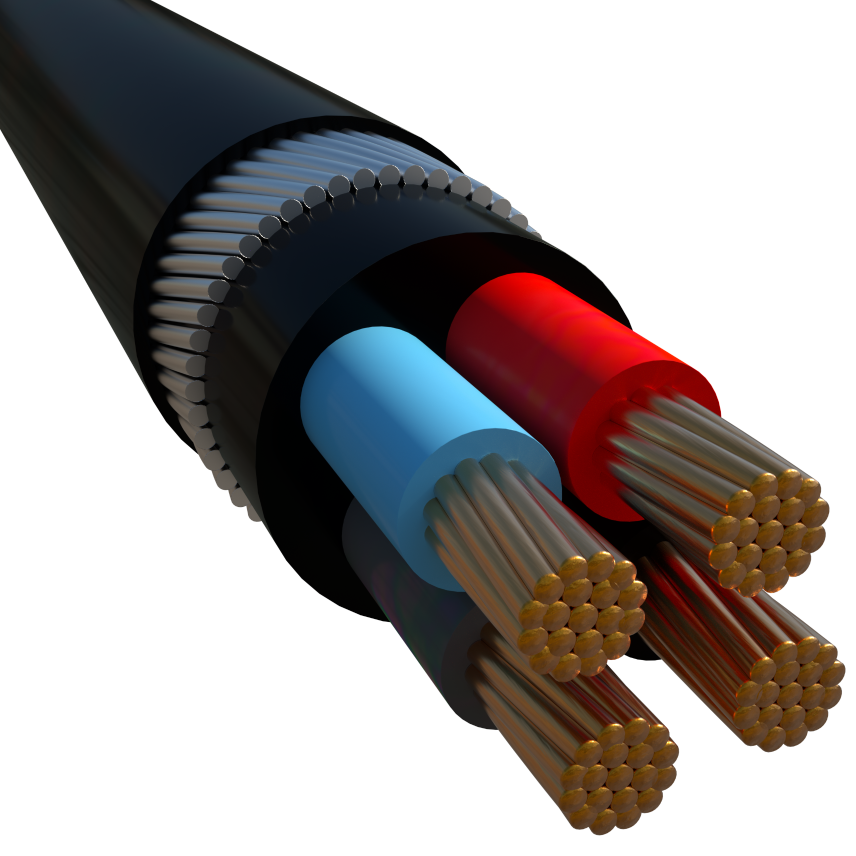

Reduced earth Armored, XLPE Insulated, PVC sheathed Power Cable (NC2XRY 3 X 35 RS + 10 RS)

Scope

This specification covers PVC insulated, multicore armoured cables, rated at 0.6/1 KV to international standard IEC 60502-1 for use indoors, outdoors, in cable ducts and for direct burial underground, where severe mechanical stresses are present.

Construction

2.1 Conductor
Plain, annealed copper conductors, circular stranded conforming to the applicable requirements of IEC 60228.

2.2 Insulation
XLPE insulation conforming to the applicable requirements of IEC 60502-1.

2.3 Assembly
Insulated conductors are laid up, filled where necessary with non-hygroscopic material and covered with an extruded thickness of thermoplastic material.

2.4 Amour
Galvanized round wires, completely covering the assembly of cores; complying to the applicable requirements of IEC 60502-1.

2.5 Sheath
PVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.
