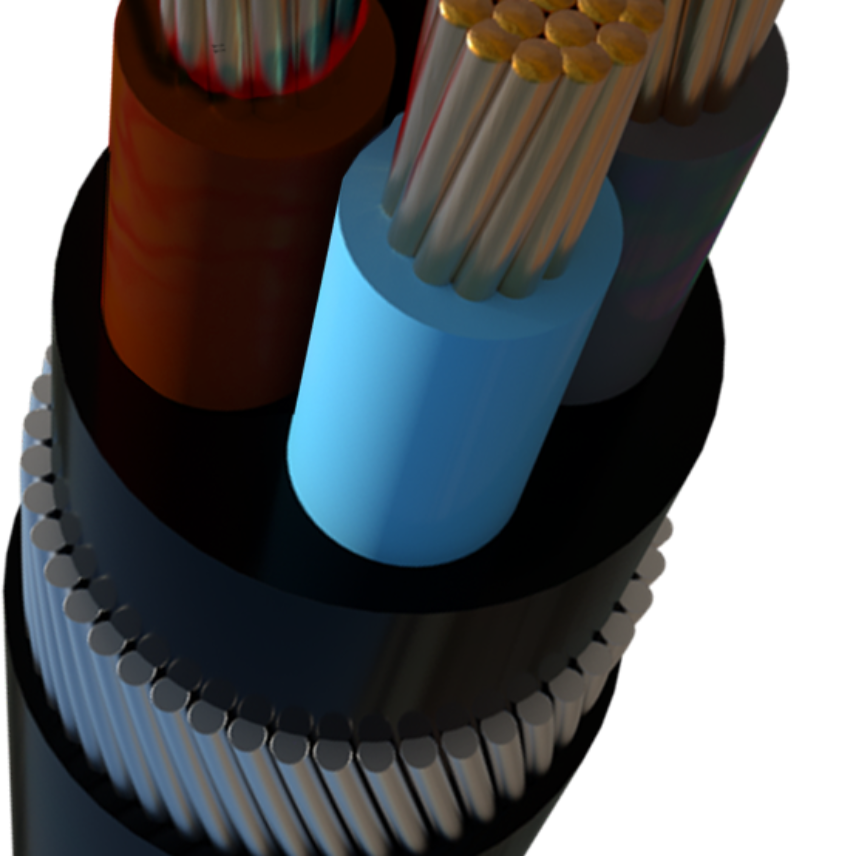

Reduced Earth, Multicore XLPE insulated, Steel Wire Armored, PVC sheathed (CU/XLPE/SWA/PVC)
Reduced Earth, Multicore XLPE insulated, Steel Wire Armored, PVC sheathed (CU/XLPE/SWA/PVC)
0.6 / 1 KV POWER CABLES Conforming to IEC 60502-1
Read moreReduced earth Armored, XLPE Insulated, PVC sheathed Power Cable (NC2XRY 3 X 35 RS + 10 RS)
Nexans ref. - Country ref. Ghana
- Packaging: m
- Average insulation thickness: 0.9 mm
- Diameter over insulation: 8.7 mm
- Insulation thickness of neutral conductor: 0.70 mm
- Maximum outer diameter: 31.9 mm
- Neutral Conductor Diameter: 3.8 mm
- Nominal Diameter under armour: 23.0 mm
- Nominal outer diameter: 29.8 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal weight: 2246.6 g/m
- Phase Conductor Diameter: 6.9 mm
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Permissible current rating buried/duct 20°C: 101 A
- Permissible current rating in open air: 88 A
- Resistance of neutral conductor at 20ºC: 1.83 Ohm/km
Reduced earth Armored, XLPE Insulated, PVC sheathed Power Cable (NC2XRY 3 X 95 RS + 25 RS)
Nexans ref.
- Packaging: m
- Average insulation thickness: 1.1 mm
- Diameter over insulation: 13.6 mm
- Insulation thickness of neutral conductor: 0.90 mm
- Maximum outer diameter: 47.1 mm
- Neutral Conductor Diameter: 5.9 mm
- Nominal Diameter under armour: 35.6 mm
- Nominal outer diameter: 44.0 mm
- Nominal outer sheath thickness: 2.2 mm
- Nominal weight: 5136.1 g/m
- Phase Conductor Diameter: 11.4 mm
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- Permissible current rating buried/duct 20°C: 347 A
- Permissible current rating in open air: 362 A
- Resistance of neutral conductor at 20ºC: 0.727 Ohm/km
Description
Description
Standards
-
ProductIEC 60228 Class 2 ; IEC 60502-1
Scope
This specification covers PVC insulated, multicore armoured cables, rated at 0.6/1 KV to international standard IEC 60502-1 for use indoors, outdoors, in cable ducts and for direct burial underground, where severe mechanical stresses are present.
Construction
2.1 Conductor
Plain, annealed copper conductors, circular stranded conforming to the applicable requirements of IEC 60228.
2.2 Insulation
XLPE insulation conforming to the applicable requirements of IEC 60502-1.
2.3 Assembly
Insulated conductors are laid up, filled where necessary with non-hygroscopic material and covered with an extruded thickness of thermoplastic material.
2.4 Amour
Galvanized round wires, completely covering the assembly of cores; complying to the applicable requirements of IEC 60502-1.
2.5 Sheath
PVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
Made in different lengths based on customer's requirement.
