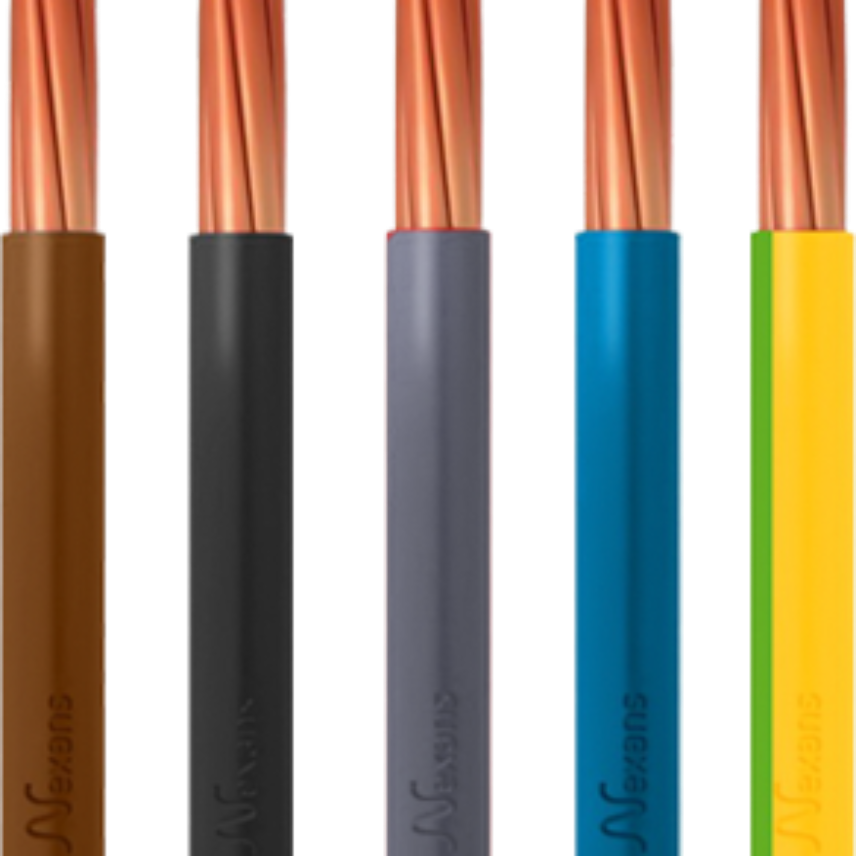

Building Wires - PVC Insulated Single Core Conduit Cable (CU/PVC)

Products

NCY 1.5 RS

Nexans ref. NCY 1201509S - Country ref. Ghana

  • Packaging: Coil (92m)
  • Approximate weight: 21 kg/km
  • Nominal conductor diameter: 1.6 mm
  • Nominal insulation thickness: 0.7 mm
  • Nominal overall diameter: 2.9 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 22 A



NCY 10.0 RS

Nexans ref. NCY 1201005S - Country ref. Ghana

  • Packaging: Coil (92m)
  • Approximate weight: 110 kg/km
  • Nominal conductor diameter: 3.8 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal overall diameter: 5.8 mm
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating in open air: 71 A



NCY 16.0 RS

Nexans ref. NCY 1201006S - Country ref. Ghana

  • Packaging: Coil (92m)
  • Approximate weight: 165 kg/km
  • Nominal conductor diameter: 4.6 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal overall diameter: 6.7 mm
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 96 A



NCY 2.5 RS

Nexans ref. NCY 1201510S - Country ref. Ghana

  • Packaging: Coil (92m)
  • Approximate weight: 33 kg/km
  • Nominal conductor diameter: 2 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal overall diameter: 3.6 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 30 A



NCY 25 RS

Nexans ref. NCY 1201007S - Country ref. Ghana

  • Packaging: Coil (100m)
  • Approximate weight: 260.9 kg/km
  • Nominal conductor diameter: 5.9 mm
  • Nominal insulation thickness: 1.2 mm
  • Nominal overall diameter: 8.3 mm
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 127 A



NCY 35 RS

Nexans ref. NCY 1201008S - Country ref. Ghana

  • Packaging: Coil (100m)
  • Approximate weight: 351 kg/km
  • Nominal conductor diameter: 6.9 mm
  • Nominal insulation thickness: 1.2 mm
  • Nominal overall diameter: 9.3 mm
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating in open air: 157 A



NCY 4.0 RS

Nexans ref. NCY 1201347S - Country ref. Ghana

  • Packaging: Coil (92m)
  • Approximate weight: 49 kg/km
  • Nominal conductor diameter: 2.4 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal overall diameter: 4.2 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating in open air: 40 A



NCY 6.0 RS

Nexans ref. NCY 1201306S - Country ref. Ghana

  • Packaging: Coil (92m)
  • Approximate weight: 66 kg/km
  • Nominal conductor diameter: 3 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal overall diameter: 4.6 mm
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating in open air: 52 A



Description

Description

Standards

  • Product
    IEC 60227-3
  • Test
    IEC 60332-1-2

Application

The PVC insulated single core conduit cable are conductors without external sheath, but are PVC insulated. Ther are use for internal wiring in dry locations, concealed in conduits (residential or commercial buildings).



Design

Conductor
Plain, annealed, electrolytic copper conductors stranded, complying with the applicable requirements of IEC 60228.

Solid class 1 cable can aslso be produced based on customer request.

Insulation
PVC based thermoplastic material (Flame retardant)

Marking

Nexans Kabelmetal ltd. CU/PVC - Cross section IEC 60277-3 450/750 V DD MM YYYY

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor flexibility
Class 2
Conductor material
Plain annealed copper
Insulation
PVC

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
450/750 V

Usage characteristics

Usage characteristics

Bending factor when installed
6 (xD)
Flame retardant
IEC 60332-1-2
Maximum operating temperature
70 °C
Short-circuit max. conductor temperature
160 °C
U.V resistance
Yes

Resources

Resources

Selling & delivery Information

A cable comes in a Roll of 100 yards (92m).
