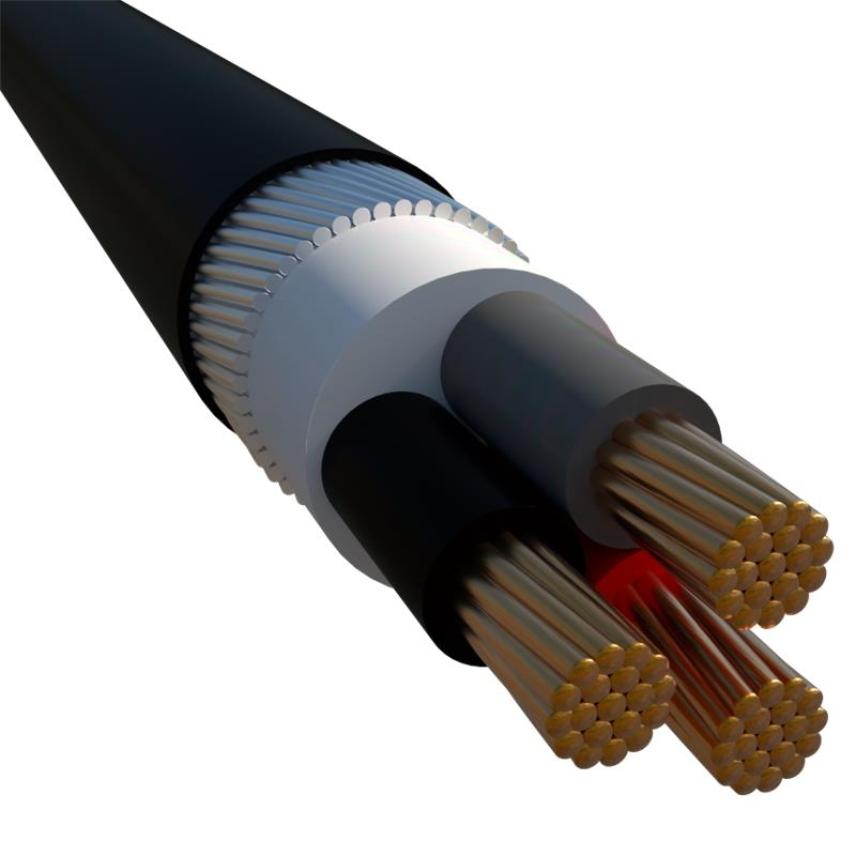

Multicore XLPE insulated, Steel Wire Armored, LSZH sheathed (CU/XLPE/SWA/LSZH)

Multicore XLPE insulated, Steel Wire Armored, LSZH sheathed (CU/XLPE/SWA/LSZH)

Multicore XLPE insulated, Steel Wire Armored, LSZH sheathed (CU/XLPE/SWA/LSZH)

Intended for use indoors, outdoors, in cable ducts and for direct burial underground, where severe mechanical stresses are present.

Read more
Contact us

Products

Actions

  • products

NC2XRH 3 X 1.5 RS

Nexans ref. NC2XRH 3 X 1.5 RS

  • Packaging: m
  • Approximate weight: 333 kg/km
  • Diameter over insulation: 3.0 mm
  • Nominal Diameter under armour: 8.5 mm
  • Nominal conductor diameter: 1.6 mm
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer diameter: 14.6 mm
  • Sheath thickness: 1.8 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Perm current rating in air 30°C: 22 A
  • Permissible current rating buried 20°C: 30 A



NC2XRH 3 X 10.0 RS

Nexans ref. NC2XRH 3 X 10.0 RS

  • Packaging: m
  • Approximate weight: 909 kg/km
  • Diameter over insulation: 5.2 mm
  • Nominal Diameter under armour: 13.2 mm
  • Nominal conductor diameter: 3.8 mm
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer diameter: 19.3 mm
  • Sheath thickness: 1.8 mm
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Perm current rating in air 30°C: 88 A
  • Permissible current rating buried 20°C: 101 A



NC2XRH 3 X 16.0 RS

Nexans ref. NC2XRH 3 X 16.0 RS

  • Packaging: m
  • Approximate weight: 1291 kg/km
  • Diameter over insulation: 6.1 mm
  • Nominal Diameter under armour: 15.1 mm
  • Nominal conductor diameter: 4.7 mm
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer diameter: 21.9 mm
  • Sheath thickness: 1.8 mm
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Perm current rating in air 30°C: 119 A
  • Permissible current rating buried 20°C: 128 A



NC2XRH 3 X 2.5 RS

Nexans ref. NC2XRH 3 X 2.5 RS

  • Packaging: m
  • Approximate weight: 394 kg/km
  • Diameter over insulation: 3.3 mm
  • Nominal Diameter under armour: 9.1 mm
  • Nominal conductor diameter: 1.9 mm
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer diameter: 15.2 mm
  • Sheath thickness: 1.8 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm current rating in air 30°C: 30 A
  • Permissible current rating buried 20°C: 41 A



NC2XRH 3 X 25.0 RS

Nexans ref. NC2XRH 3 X 25.0 RS

  • Packaging: m
  • Approximate weight: 1793 kg/km
  • Diameter over insulation: 7.7 mm
  • Nominal Diameter under armour: 18.6 mm
  • Nominal conductor diameter: 5.9 mm
  • Nominal insulation thickness: 0.9 mm
  • Nominal outer diameter: 25.4 mm
  • Sheath thickness: 1.8 mm
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Perm current rating in air 30°C: 157 A
  • Permissible current rating buried 20°C: 162 A



NC2XRH 3 X 4.0 RS

Nexans ref. NC2XRH 3 X 4.0 RS

  • Packaging: m
  • Approximate weight: 504 kg/km
  • Diameter over insulation: 3.8 mm
  • Nominal Diameter under armour: 10.3 mm
  • Nominal conductor diameter: 2.4 mm
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer diameter: 16.4 mm
  • Sheath thickness: 1.8 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Perm current rating in air 30°C: 50 A
  • Permissible current rating buried 20°C: 59 A



NC2XRH 3 X 6.0 RS

Nexans ref. NC2XRH 3 X 6.0 RS

  • Packaging: m
  • Approximate weight: 607 kg/km
  • Diameter over insulation: 4.4 mm
  • Nominal Diameter under armour: 11.4 mm
  • Nominal conductor diameter: 3 mm
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer diameter: 17.5 mm
  • Sheath thickness: 1.8 mm
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Perm current rating in air 30°C: 64 A
  • Permissible current rating buried 20°C: 74 A



NC2XRH 4 X 1.5 RS

Nexans ref. NC2XRH 4 X 1.5 RS

  • Packaging: m
  • Approximate weight: 378 kg/km
  • Diameter over insulation: 3.0 mm
  • Nominal Diameter under armour: 9.2 mm
  • Nominal conductor diameter: 1.6 mm
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer diameter: 15.3 mm
  • Sheath thickness: 1.8 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Perm current rating in air 30°C: 22 A
  • Permissible current rating buried 20°C: 30 A



NC2XRH 4 X 10.0 RS

Nexans ref. NC2XRH 4 X 10.0 RS

  • Packaging: m
  • Approximate weight: 1058 kg/km
  • Diameter over insulation: 5.2 mm
  • Nominal Diameter under armour: 14.6 mm
  • Nominal conductor diameter: 3.8 mm
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer diameter: 20.7 mm
  • Sheath thickness: 1.8 mm
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Perm current rating in air 30°C: 88 A
  • Permissible current rating buried 20°C: 101 A



NC2XRH 4 X 120 RS

Nexans ref. NC2XRH 4 X 120 RS

  • Packaging: m
  • Approximate weight: 7748 kg/km
  • Diameter over insulation: 15.3 mm
  • Nominal Diameter under armour: 39.7 mm
  • Nominal conductor diameter: 12.9 mm
  • Nominal insulation thickness: 1.2 mm
  • Nominal outer diameter: 49.9 mm
  • Sheath thickness: 2.6 mm
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Perm current rating in air 30°C: 419 A
  • Permissible current rating buried 20°C: 397 A



NC2XRH 4 X 150 RS

Nexans ref. NC2XRH 4 X 150 RS

  • Packaging: m
  • Approximate weight: 9609 kg/km
  • Diameter over insulation: 17.0 mm
  • Nominal Diameter under armour: 43.8 mm
  • Nominal conductor diameter: 14.2 mm
  • Nominal insulation thickness: 1.4 mm
  • Nominal outer diameter: 54.3 mm
  • Sheath thickness: 2.7 mm
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Perm current rating in air 30°C: 481 A
  • Permissible current rating buried 20°C: 444 A



NC2XRH 4 X 16.0 RS

Nexans ref. NC2XRH 4 X 16.0 RS

  • Packaging: m
  • Approximate weight: 1409 kg/km
  • Diameter over insulation: 6.1 mm
  • Nominal Diameter under armour: 16.7 mm
  • Nominal conductor diameter: 4.7 mm
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer diameter: 23.5 mm
  • Sheath thickness: 1.8 mm
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Perm current rating in air 30°C: 119 A
  • Permissible current rating buried 20°C: 128 A



NC2XRH 4 X 185 RS

Nexans ref. NC2XRH 4 X 185 RS

  • Packaging: m
  • Approximate weight: 12134 kg/km
  • Diameter over insulation: 19.1 mm
  • Nominal Diameter under armour: 49.3 mm
  • Nominal conductor diameter: 15.9 mm
  • Nominal insulation thickness: 2.9 mm
  • Nominal outer diameter: 60.1 mm
  • Sheath thickness: 2.9 mm
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Perm current rating in air 30°C: 549 A
  • Permissible current rating buried 20°C: 500 A



NC2XRH 4 X 2.5 RS

Nexans ref. NC2XRH 4 X 2.5 RS

  • Packaging: m
  • Approximate weight: 448 kg/km
  • Diameter over insulation: 3.3 mm
  • Nominal Diameter under armour: 10.0 mm
  • Nominal conductor diameter: 1.9 mm
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer diameter: 16.1 mm
  • Sheath thickness: 1.8 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm current rating in air 30°C: 37 A
  • Permissible current rating buried 20°C: 46 A



NC2XRH 4 X 240 RS

Nexans ref. NC2XRH 4 X 240 RS

  • Packaging: m
  • Approximate weight: 14496 kg/km
  • Diameter over insulation: 21.4 mm
  • Nominal Diameter under armour: 54.9 mm
  • Nominal conductor diameter: 18 mm
  • Nominal insulation thickness: 1.7 mm
  • Nominal outer diameter: 66.1 mm
  • Sheath thickness: 3.1 mm
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Perm current rating in air 30°C: 645 A
  • Permissible current rating buried 20°C: 578 A



NC2XRH 4 X 25.0 RS

Nexans ref. NC2XRH 4 X 25.0 RS

  • Packaging: m
  • Approximate weight: 2078 kg/km
  • Diameter over insulation: 7.7 mm
  • Nominal Diameter under armour: 20.6 mm
  • Nominal conductor diameter: 5.9 mm
  • Nominal insulation thickness: 0.9 mm
  • Nominal outer diameter: 27.5 mm
  • Sheath thickness: 1.8 mm
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Perm current rating in air 30°C: 157 A
  • Permissible current rating buried 20°C: 162 A



NC2XRH 4 X 35 RS

Nexans ref. NC2XRH 4 X 35 RS

  • Packaging: m
  • Approximate weight: 2628 kg/km
  • Diameter over insulation: 8.7 mm
  • Nominal Diameter under armour: 23.0 mm
  • Nominal conductor diameter: 6.9 mm
  • Nominal insulation thickness: 0.9 mm
  • Nominal outer diameter: 30.0 mm
  • Sheath thickness: 1.9 mm
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Perm current rating in air 30°C: 194 A
  • Permissible current rating buried 20°C: 195 A



NC2XRH 4 X 4.0 RS

Nexans ref. NC2XRH 4 X 4.0 RS

  • Packaging: m
  • Approximate weight: 565 kg/km
  • Diameter over insulation: 3.8 mm
  • Nominal Diameter under armour: 11.3 mm
  • Nominal conductor diameter: 2.4 mm
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer diameter: 17.4 mm
  • Sheath thickness: 1.8 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Perm current rating in air 30°C: 50 A
  • Permissible current rating buried 20°C: 59 A



NC2XRH 4 X 50 RS

Nexans ref. NC2XRH 4 X 50 RS

  • Packaging: m
  • Approximate weight: 3400 kg/km
  • Diameter over insulation: 10.1 mm
  • Nominal Diameter under armour: 26.4 mm
  • Nominal conductor diameter: 8.1 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer diameter: 34.5 mm
  • Sheath thickness: 2.1 mm
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Perm current rating in air 30°C: 235 A
  • Permissible current rating buried 20°C: 235 A



NC2XRH 4 X 6.0 RS

Nexans ref. NC2XRH 4 X 6.0 RS

  • Packaging: m
  • Approximate weight: 704 kg/km
  • Diameter over insulation: 4.4 mm
  • Nominal Diameter under armour: 12.5 mm
  • Nominal conductor diameter: 3 mm
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer diameter: 18.6 mm
  • Sheath thickness: 1.8 mm
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Perm current rating in air 30°C: 64 A
  • Permissible current rating buried 20°C: 74 A



NC2XRH 4 X 70 RS

Nexans ref. NC2XRH 4 X 70 RS

  • Packaging: m
  • Approximate weight: 4727 kg/km
  • Diameter over insulation: 11.9 mm
  • Nominal Diameter under armour: 31.1 mm
  • Nominal conductor diameter: 9.7 mm
  • Nominal insulation thickness: 1.1 mm
  • Nominal outer diameter: 39.6 mm
  • Sheath thickness: 2.2 mm
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Perm current rating in air 30°C: 299 A
  • Permissible current rating buried 20°C: 290 A



NC2XRH 4 X 95 RS

Nexans ref. NC2XRH 4 X 95 RS

  • Packaging: m
  • Approximate weight: 6567 kg/km
  • Diameter over insulation: 13.6 mm
  • Nominal Diameter under armour: 35.2 mm
  • Nominal conductor diameter: 11.4 mm
  • Nominal insulation thickness: 1.1 mm
  • Nominal outer diameter: 44.0 mm
  • Sheath thickness: 2.4 mm
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Perm current rating in air 30°C: 362 A
  • Permissible current rating buried 20°C: 347 A



Description

Description

Standards

  • Product
    IEC 60228; IEC 60502-1
  • Test
    IEC 60754

Scope

This specification covers XLPE insulated, circular shaped, multicore armoured
cables, rated at 0.6/1 KV according to IEC 60502-1 for use indoors, outdoors, in cable
ducts and for direct burial underground, where severe mechanical stresses are
present.

Construction

2.1 Conductor
Plain, annealed electrolytic copper conductors, circular stranded, or sectoral stranded,
conforming to the applicable requirements of IEC 60228.


2.2 Insulation
XLPE thermosetting material, conforming to the applicable requirements of IEC
60502-1.


2.3 Assembly
Insulated conductors are laid up, filled where necessary with non-hygroscopic
material and covered with an extruded thickness of thermoplastic material.


2.4 Armour
Galvanized round wires completely covering the assembly of cores complying to the
applicable requirements of IEC 60502-1.


2.5 Sheath
LSZH compound conforming to the applicable requirements of IEC 60502-1.


2.6 TESTS
Conforming to the applicable requirements of IEC 60502-1 either on Raw materials or
on finished products

Application

 Intended for use indoors, outdoors, in cable ducts and for direct burial underground, where severe mechanical stresses are
present.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor flexibility
Class 2 IEC 60228
Conductor material
Plain annealed copper
Halogen free
Yes
Insulation
Extruded XLPE compound
Material of bedding
LSZH
Outer sheath
LSZH

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0,6/1 kV

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Good

Usage characteristics

Usage characteristics

Bending factor when installed
10 (xD)
Flame retardant
IEC 60332-1-2
Maximum operating temperature
90 °C
Operating temperature, range
-25 ... 55 °C
Short-circuit max. conductor temperature
250 °C
U.V resistance
Yes

Resources

Resources

Close

Our websites

Select your country to find our products and solutions

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
