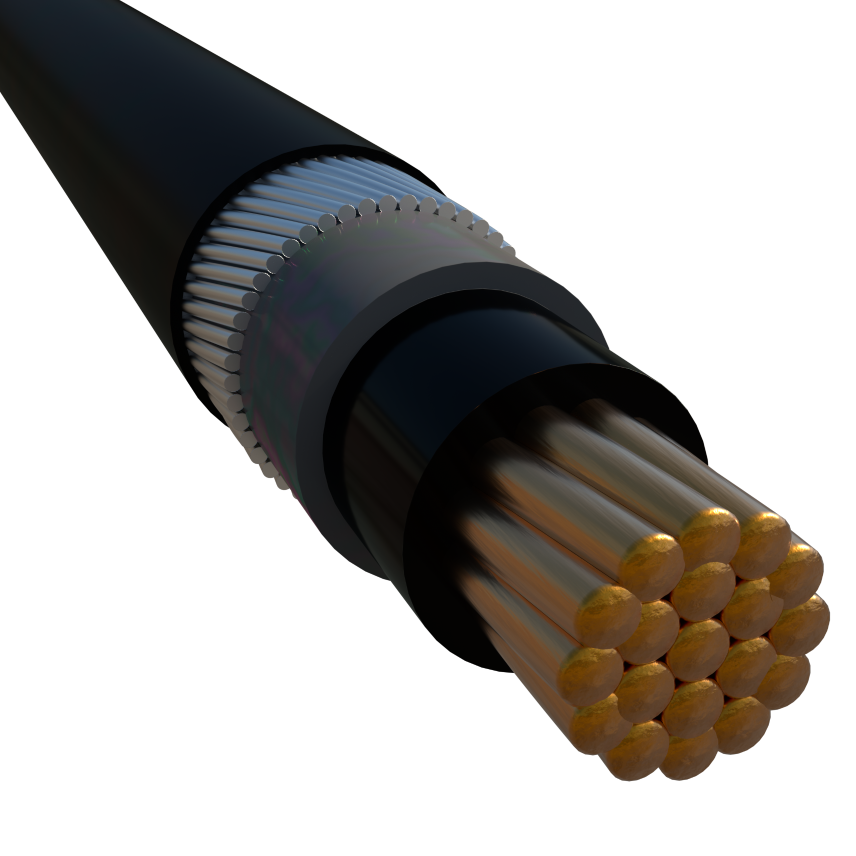

Single core XLPE insulated, Aluminum Wire Armored, Flame Retardant Low Smoke PVC sheathed (CU/XLPE/AWA/FRLS PVC)
Single core XLPE insulated, Aluminum Wire Armored, Flame Retardant Low Smoke PVC sheathed (CU/XLPE/AWA/FRLS PVC)
0.6 / 1 KV POWER CABLES Conforming to IEC 60502-1
Read moreNC2XAY 1x120 RS
Nexans ref.
- Diameter over Sheath: 23.9 mm
- Diameter over insulation: 15.3 mm
- Nominal conductor diameter: 12.9 mm
- Nominal diameter over bedding: 17.3 mm
- Nominal insulation thickness: 1.2 mm
- Nominal outer sheath thickness: 1.7 mm
- Nominal weight: 1624 g/m
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- Perm current rating in air 30°C: 419 A
- Permissible current rating when buried: 397 A
NC2XAY 1x150 RS
Nexans ref.
- Diameter over Sheath: 25.8 mm
- Diameter over insulation: 17.0 mm
- Nominal conductor diameter: 14.2 mm
- Nominal diameter over bedding: 19.0 mm
- Nominal insulation thickness: 1.4 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal weight: 1932 g/m
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- Perm current rating in air 30°C: 433 A
- Permissible current rating when buried: 400 A
NC2XAY 1x185 RS
Nexans ref.
- Diameter over Sheath: 28 mm
- Diameter over insulation: 19.1 mm
- Nominal conductor diameter: 15.9 mm
- Nominal diameter over bedding: 21.1 mm
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal weight: 2350 g/m
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
- Perm current rating in air 30°C: 549 A
- Permissible current rating when buried: 500 A
NC2XAY 1x240 RS
Nexans ref.
- Diameter over Sheath: 30.5 mm
- Diameter over insulation: 21.4 mm
- Nominal conductor diameter: 18 mm
- Nominal diameter over bedding: 23.4 mm
- Nominal insulation thickness: 1.7 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal weight: 3135 g/m
- Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
- Perm current rating in air 30°C: 645 A
- Permissible current rating when buried: 578 A
NC2XAY 1x300 RS
Nexans ref.
- Diameter over Sheath: 34.1 mm
- Diameter over insulation: 24.0 mm
- Nominal conductor diameter: 20.4 mm
- Nominal diameter over bedding: 26.0 mm
- Nominal insulation thickness: 1.8 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal weight: 4368 g/m
- Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
- Perm current rating in air 30°C: 735 A
- Permissible current rating when buried: 655 A
NC2XAY 1x400 RS
Nexans ref.
- Diameter over Sheath: 38 mm
- Diameter over insulation: 27.2 mm
- Nominal conductor diameter: 23.2 mm
- Nominal diameter over bedding: 29.6 mm
- Nominal insulation thickness: 2.0 mm
- Nominal outer sheath thickness: 2.2 mm
- Nominal weight: 5856 g/m
- Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
- Perm current rating in air 30°C: 859 A
- Permissible current rating when buried: 754 A
NC2XAY 1x500 RS
Nexans ref.
- Diameter over Sheath: 41.6 mm
- Diameter over insulation: 30.6 mm
- Nominal conductor diameter: 26.2 mm
- Nominal diameter over bedding: 33.0 mm
- Nominal insulation thickness: 2.2 mm
- Nominal outer sheath thickness: 2.3 mm
- Nominal weight: 6189 g/m
- Max. DC resistance of the conductor at 20°C: 0.0366 Ohm/km
- Perm current rating in air 30°C: 960 A
- Permissible current rating when buried: 852 A
NC2XAY 1x630 RS
Nexans ref.
- Diameter over Sheath: 47.1 mm
- Diameter over insulation: 34.7 mm
- Nominal conductor diameter: 29.9 mm
- Nominal diameter over bedding: 37.1 mm
- Nominal insulation thickness: 2.4 mm
- Nominal outer sheath thickness: 2.5 mm
- Nominal weight: 7436 g/m
- Max. DC resistance of the conductor at 20°C: 0.0283 Ohm/km
- Perm current rating in air 30°C: 1096 A
- Permissible current rating when buried: 961 A
NC2XAY 1x95 RS
Nexans ref.
- Diameter over Sheath: 23.9 mm
- Diameter over insulation: 15.3 mm
- Nominal conductor diameter: 12.9 mm
- Nominal diameter over bedding: 17.3 mm
- Nominal insulation thickness: 1.2 mm
- Nominal outer sheath thickness: 1.7 mm
- Nominal weight: 1624 g/m
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- Perm current rating in air 30°C: 419 A
- Permissible current rating when buried: 397 A
Description
Description
Standards
-
ProductIEC 60228; IEC 60502-1
-
TestIEC 60332-1-2; IEC 61034
Scope
This specification covers Flame Retardant Low Smoke PVC, circular, single core armoured cables, rated at 0.6/1 KV according to IEC 60502-1 for use indoors, outdoors, in cable ducts and for direct burial underground, where severe mechanical stresses are present, and suitable for locations where fire safety is a priority.
Construction
2.1 Conductor
Plain, annealed electrolytic copper conductors, circular stranded, conforming to the applicable requirements of IEC 60228.
2.2 Insulation
XLPE insulation, conforming to the applicable requirements of IEC 60502-1.
2.3 Armour
Aluminum wires armor, complying to the applicable requirements of IEC 60502-1.
2.5 Sheath
Flame Retardant Low Smoke PVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.
2.6 TESTS
Conforming to the applicable requirements of IEC 60502-1 either on Raw materials or on finished products.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
