Low Voltage (0.6/1.0kV) Unarmored, XLPE Insulated, PVC Sheathed Power Cable.
Low Voltage (0.6/1.0kV) Unarmored, XLPE Insulated, PVC Sheathed Power Cable.
Unarmored, XLPE insulated PVC sheathed power cable.

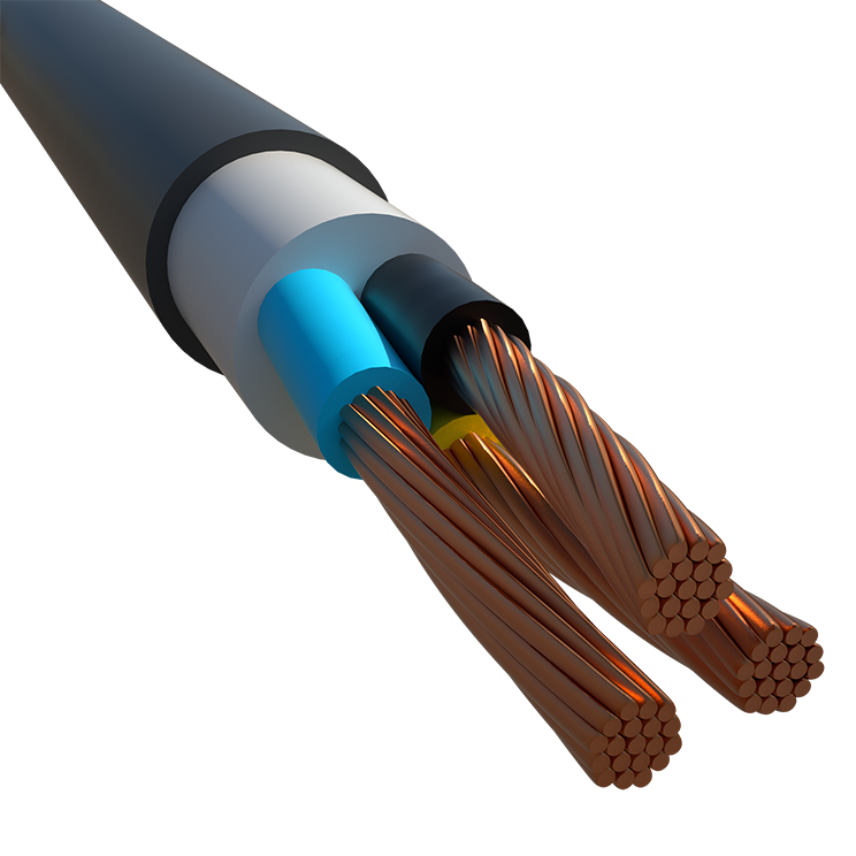

Read more3x1.5mm2 Unarmored, XLPE Insulated, PVC sheathed Power Cable (NC2XY 3 x 1.5 RS)
Nexans ref. - Country ref. Ghana
- Packaging: m
- Conductor shape: Circular non compacted
- Inner covering: Extruded
- Conductor diameter (mm): 1.5
- Diameter over filler / inner sheath: 8.3 mm
- Maximum cable diameter: 12.7 mm
- Nominal core diameter: 2.9 mm
- Nominal outer diameter: 11.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal weight: 199 g/m
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating buried/duct 20°C: 34 A
- Permissible current rating in open air: 27 A
- Rated Voltage Uo/U (Um): 0,6/1 kV
3x2.5mm2 Unarmored, XLPE Insulated, PVC sheathed Power Cable (NC2XY 3 x 2.5 RS)
Nexans ref. - Country ref. Ghana
- Packaging: m
- Conductor shape: Circular non compacted
- Inner covering: Extruded
- Conductor diameter (mm): 1.90
- Diameter over filler / inner sheath: 9.2 mm
- Maximum cable diameter: 13.6 mm
- Nominal core diameter: 3.3 mm
- Nominal outer diameter: 12.8 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal weight: 233.7 g/m
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating buried/duct 20°C: 46 A
- Permissible current rating in open air: 37 A
- Rated Voltage Uo/U (Um): 0,6/1 kV
Single Core Unarmored, XLPE Insulated, PVC sheathed Copper 240mm2 (NC2XY 240 RS)
Nexans ref. - Country ref. Ghana
- Packaging: m
- Conductor shape: Circular compacted
- Inner covering:
- Conductor diameter (mm): 18.2
- Diameter over filler / inner sheath: - mm
- Maximum cable diameter: 26.8 mm
- Nominal core diameter: 21.6 mm
- Nominal outer diameter: 25.0 mm
- Nominal outer sheath thickness: 1.7 mm
- Nominal weight: 2507.9 g/m
- Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
- Permissible current rating buried/duct 20°C: 578 A
- Permissible current rating in open air: 645 A
- Rated Voltage Uo/U (Um): 0.6/ 1 (1.2) kV
Description
Description
Standards
-
ProductIEC 60502-1
Applications
- Annealed stranded coper conductor or aluminium conductor XLPE insulation, PVC sheathed for single core cable rated at 0.6/1 KV according to IEC 60502-1 for use indoors, outdoors, and in cable ducts.
- Annealed stranded coper conductor or aluminium conductor XLPE insulation, PP fillers, PVC sheathed for multi core cable rated at 0.6/1.0 KV according to IEC 60502-1 for use indoors, outdoors, and in cable ducts.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Armour type
Unarmoured
Conductor flexibility
Class 2 acc. to IEC 60228
Dimensional characteristics
Dimensional characteristics
External lay direction
Z
Usage characteristics
Usage characteristics
Max. conductor temperature in service
90 °C
Metric marking
METRIC MARKING
Resources
Resources
Selling & delivery Information
Made in different lengths based on customer's requirement.
